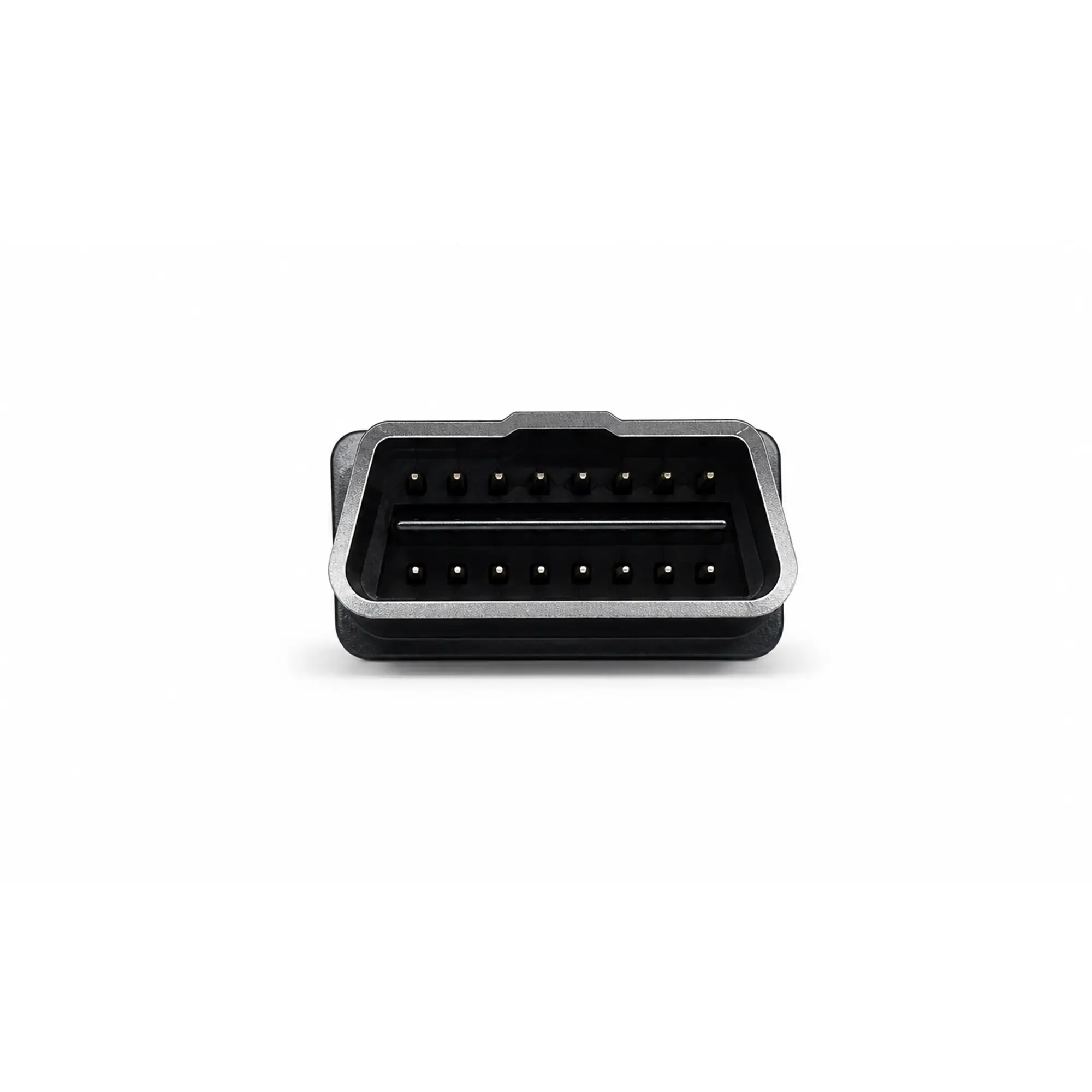

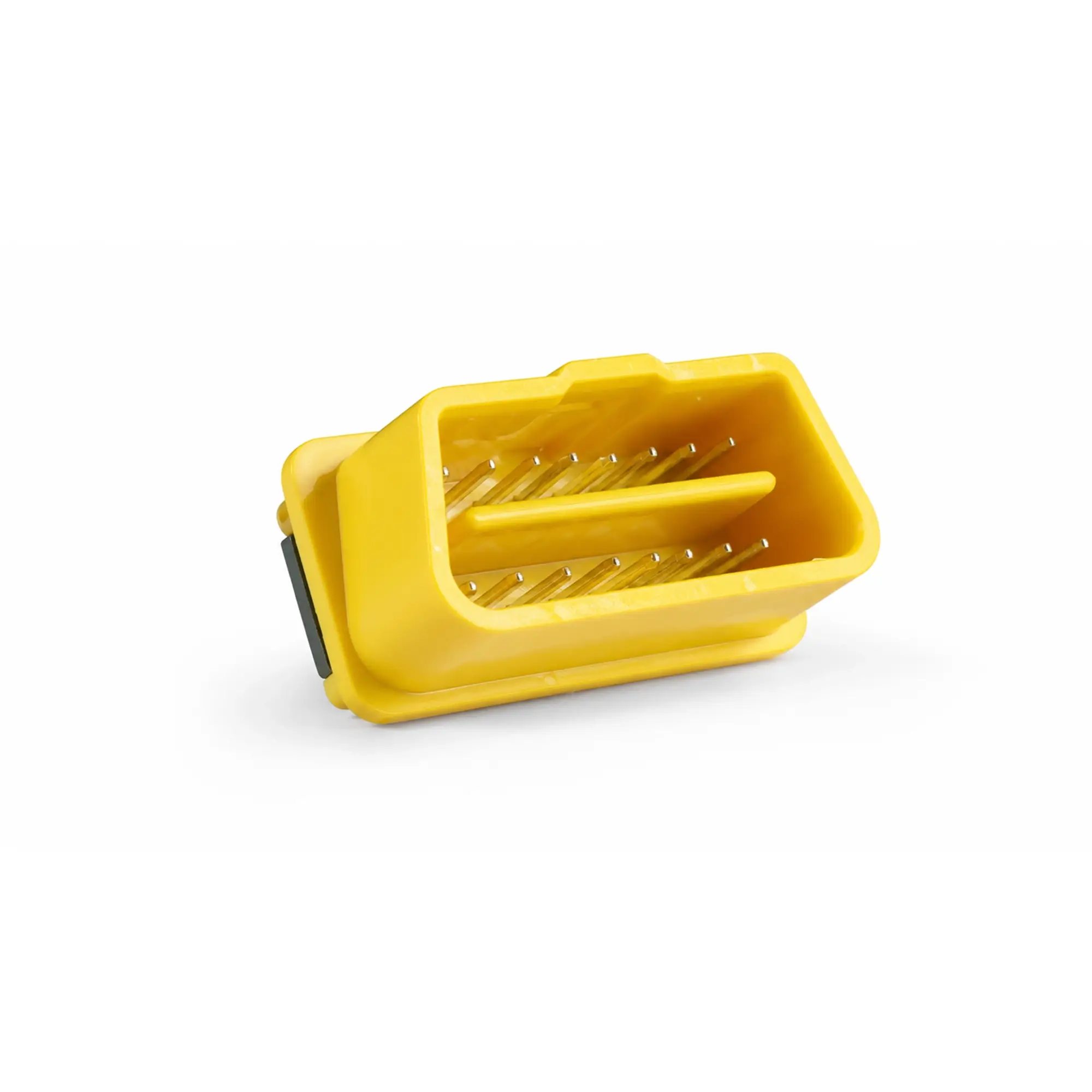

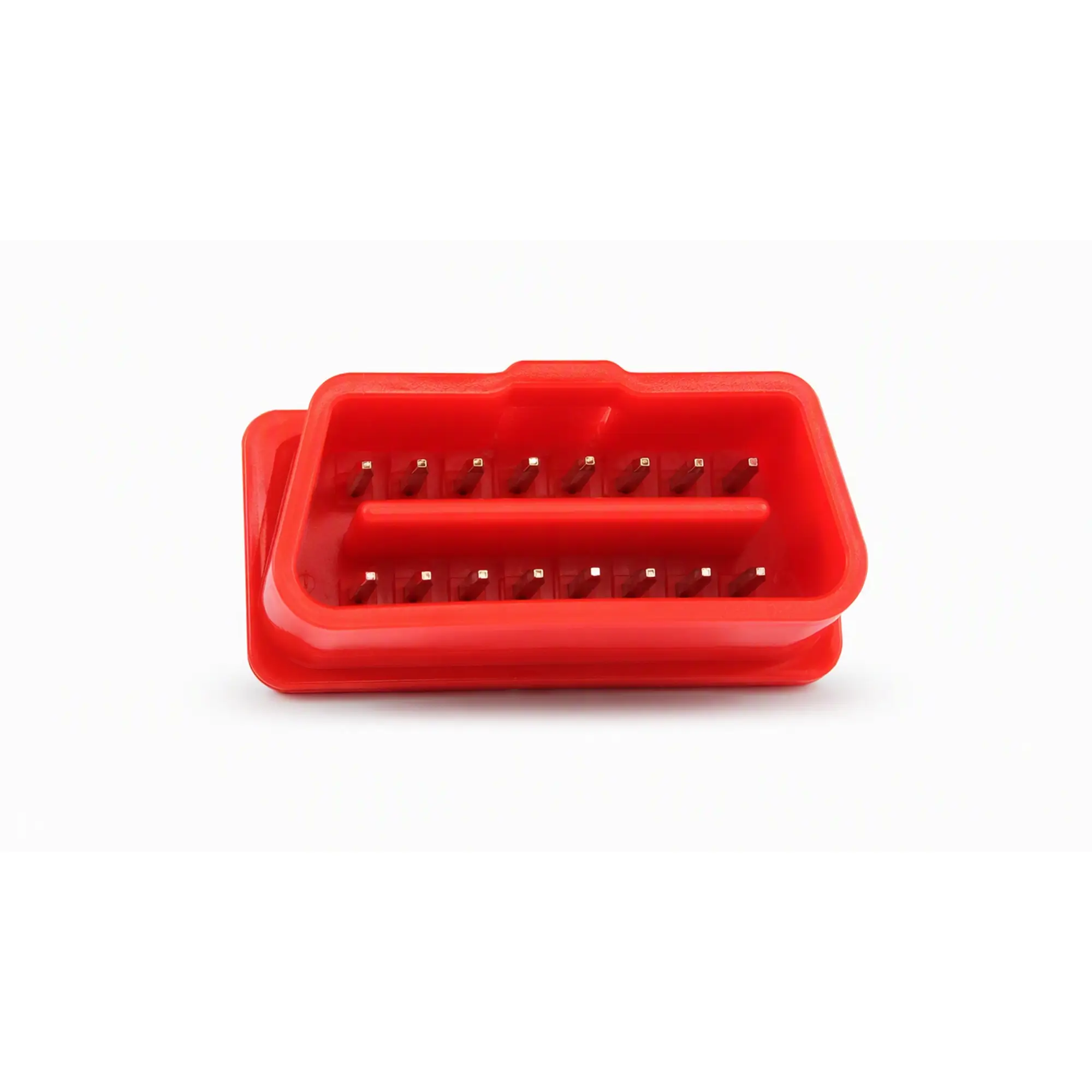

OBD2 Male Connector – Right Angle

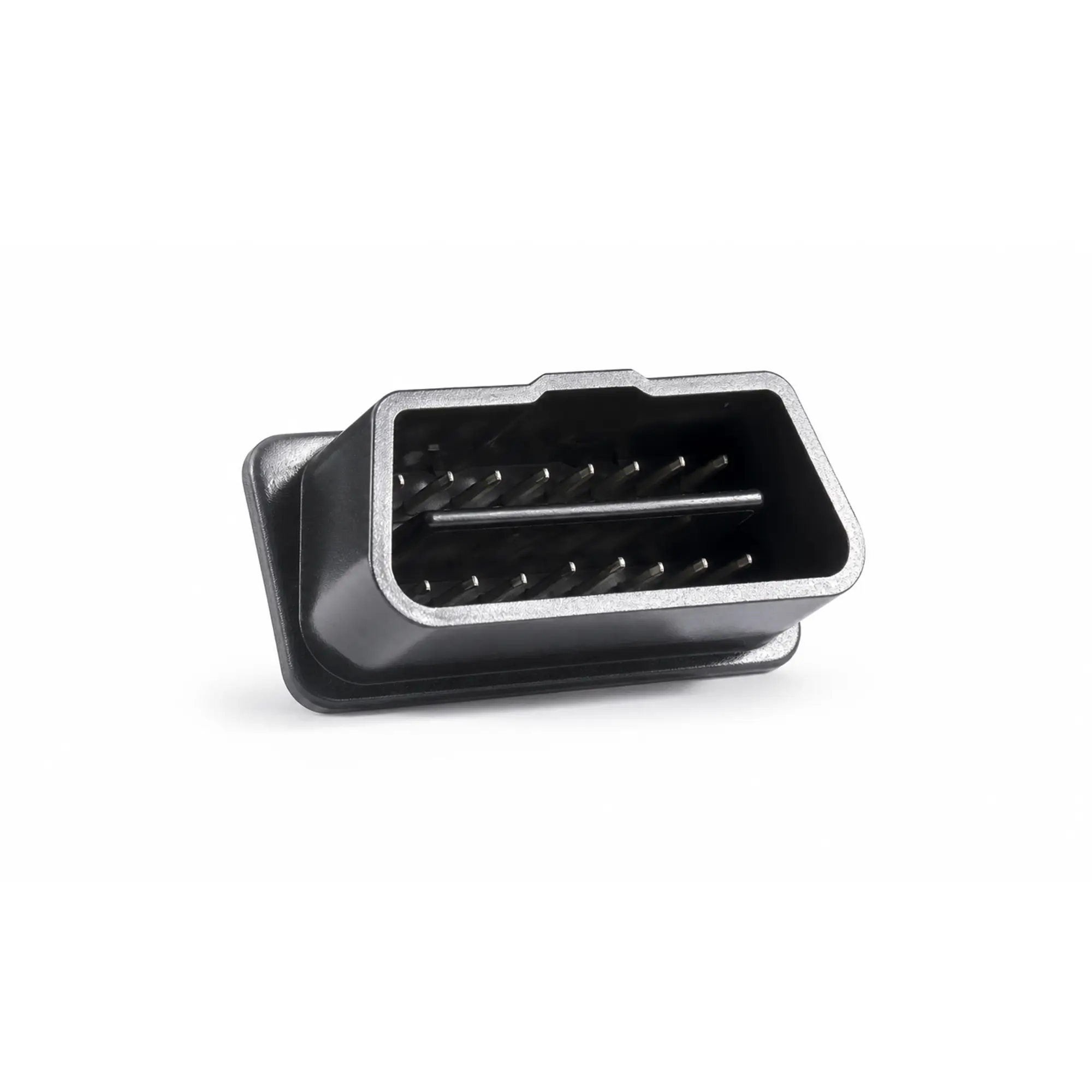

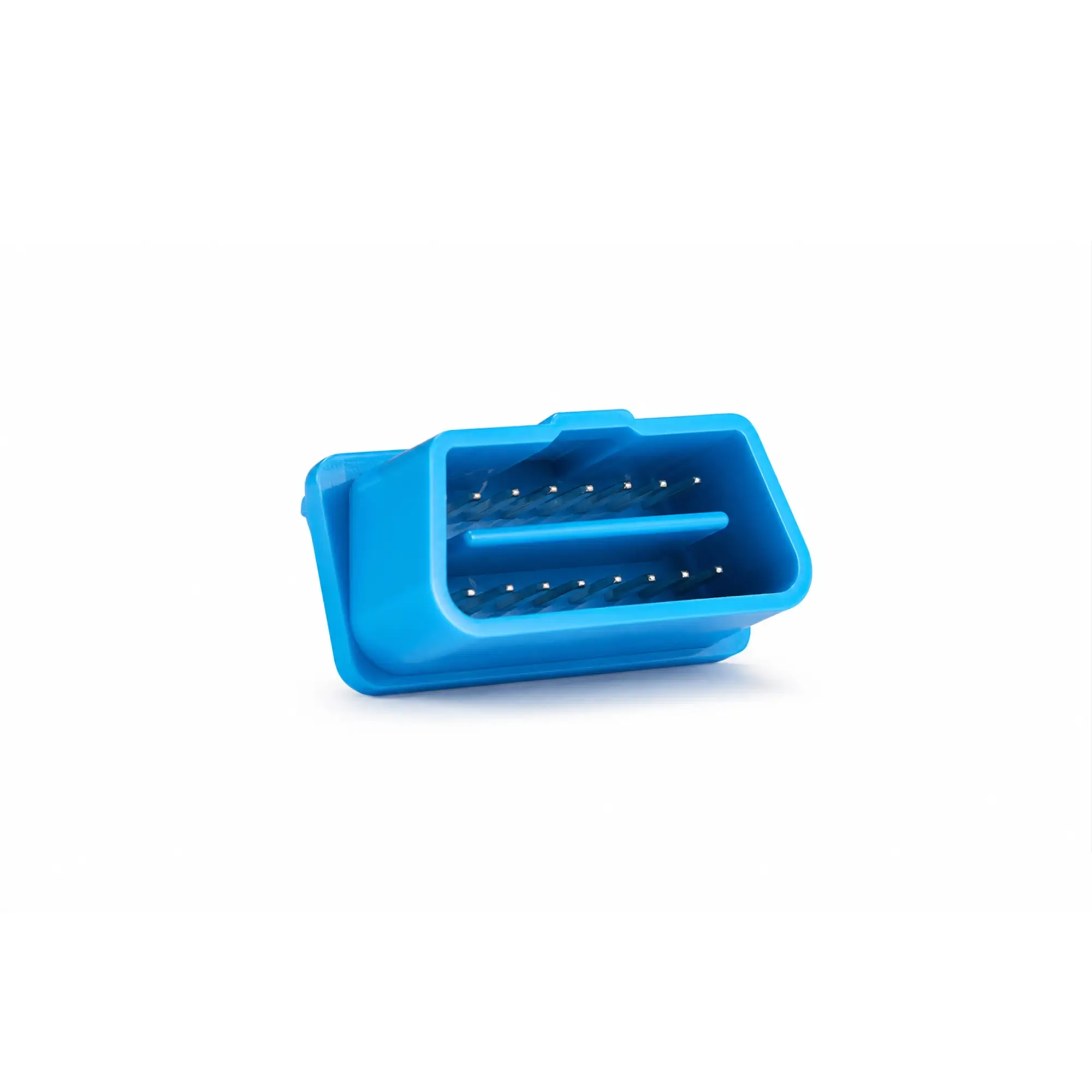

M4KEY® Professional 16-Pin Male OBD2 Bare Connector (Right Angle / 90-Degree) – For Projects & Repair

Important Note: This product is NOT a diagnostic tool or a scanner. It is a high-quality, bare 16-pin male OBD2 plug equipped with an integrated PCB and 90-degree pin header, engineered specifically for automotive professionals, bench harness makers, and electronics developers.

Engineered for Professional Applications:

• Direct PCB & Board Integration: The pre-installed 90-degree (right-angle) pin headers make this connector ideal for soldering directly onto custom PCBs, breakout boards, or compact electronic modules without bending pins.

• Bench Harness & Test Cable Building: Perfect for developing ECU bench test platforms, desktop flashers, CAN filter circuits, and key programmer test rigs where compact, angled cable routing is required.

• Professional Repair & Adaptation: Designed to replace damaged OBD2 plugs or adapt diagnostic interfaces to a 90-degree low-profile format to prevent cable strain in tight spaces.

⚠️ PROFESSIONAL WARNING ⚠️

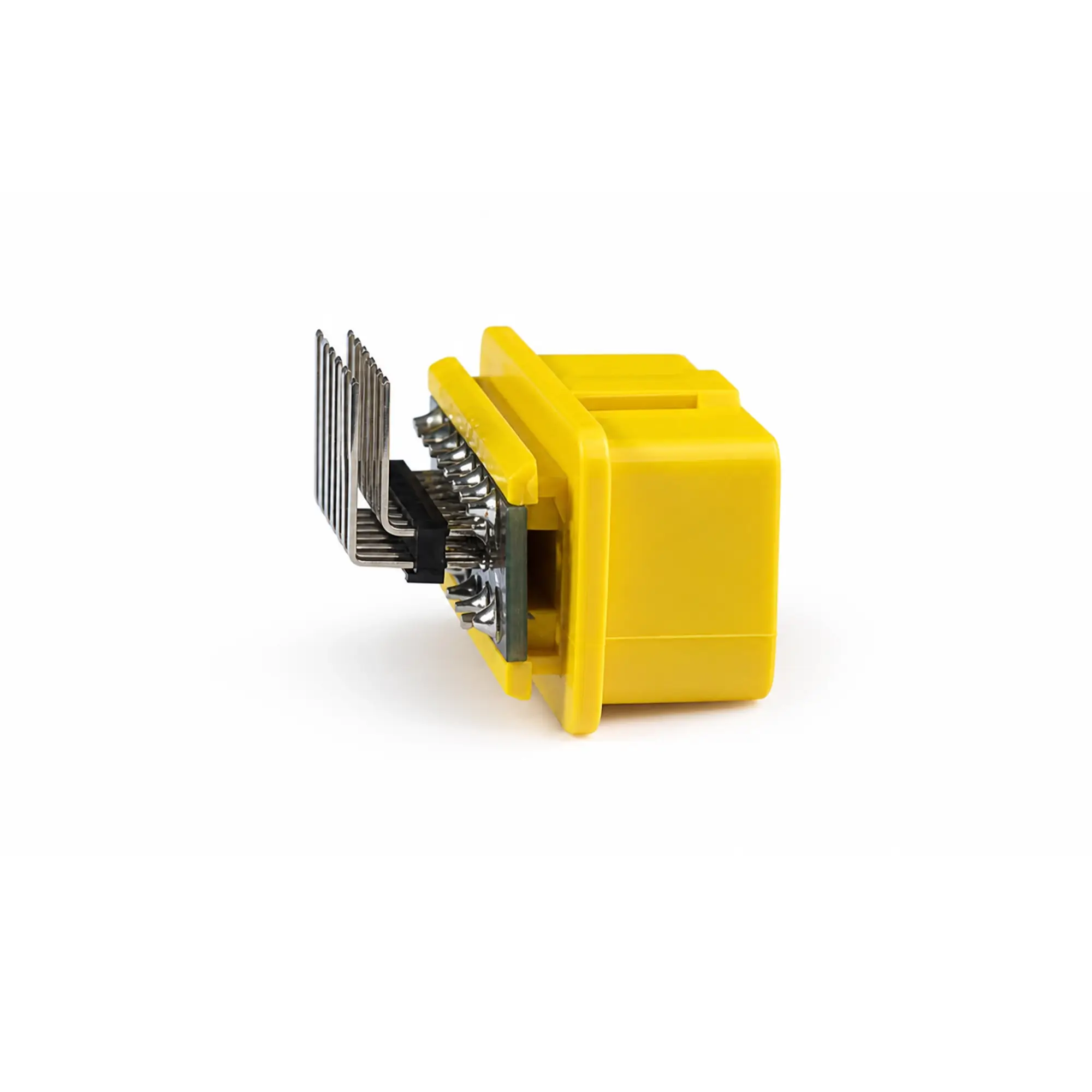

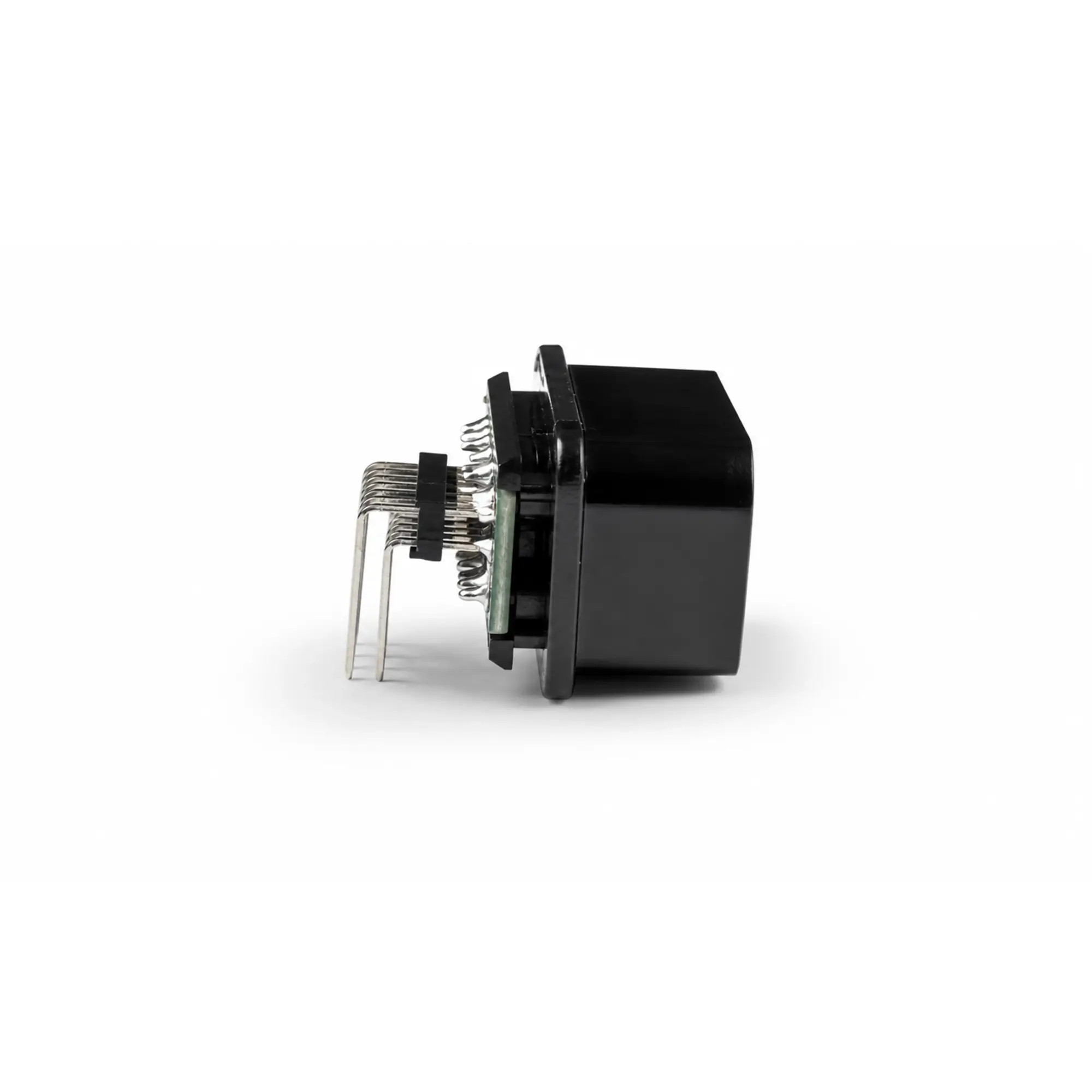

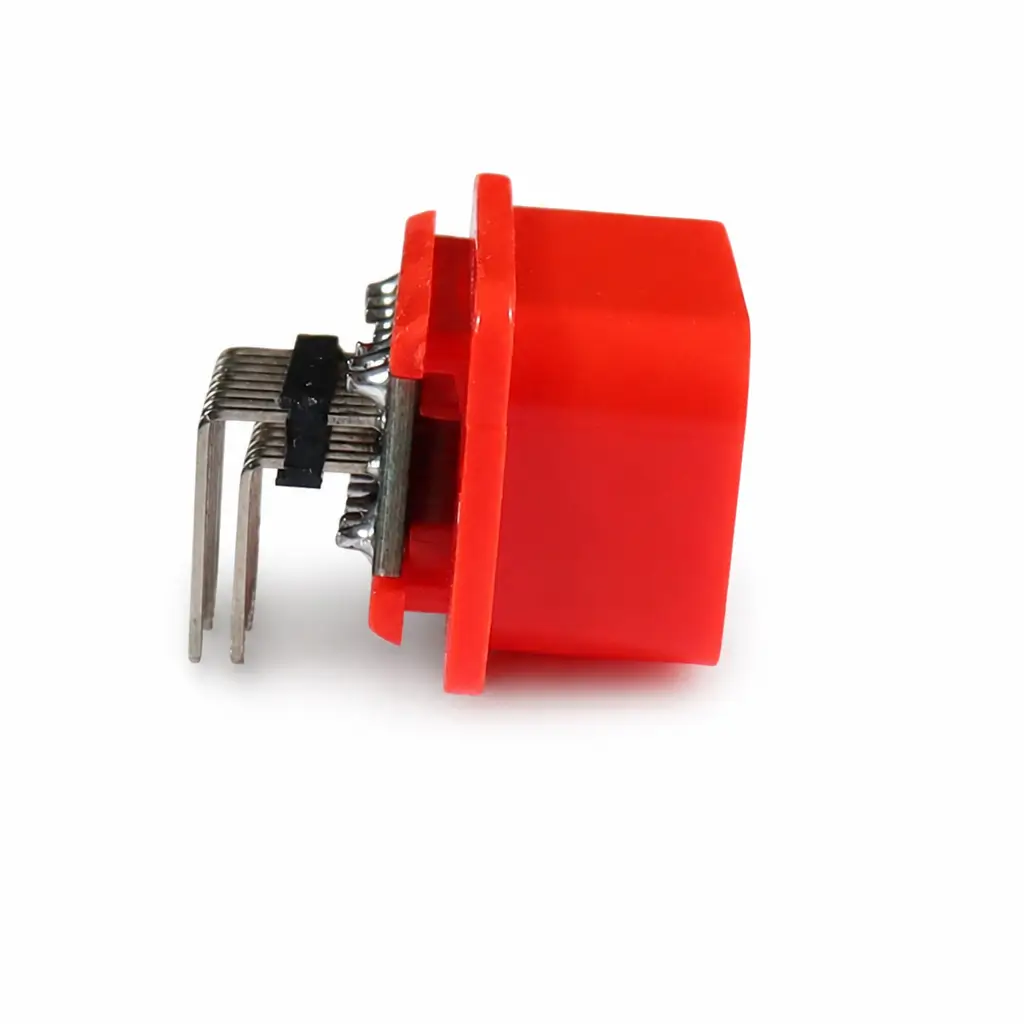

• This product is a bare male connector with an angled pin header on a small carrier PCB only.

• NO diagnostic software, main processing chips, or communication transceivers included.

• NO external wires or outer enclosure/housing shell included.

• This component is strictly intended for professionals who have basic soldering and electronics assembly skills.

Key Features

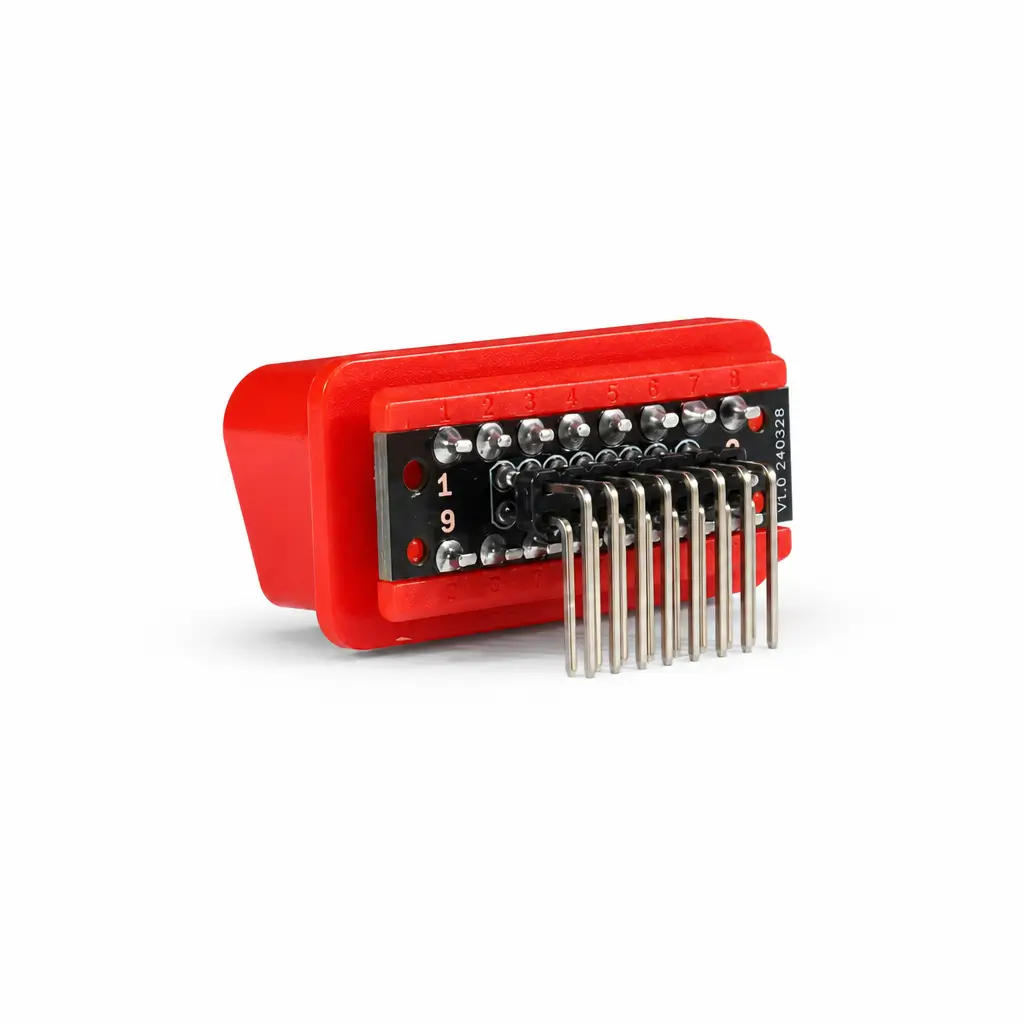

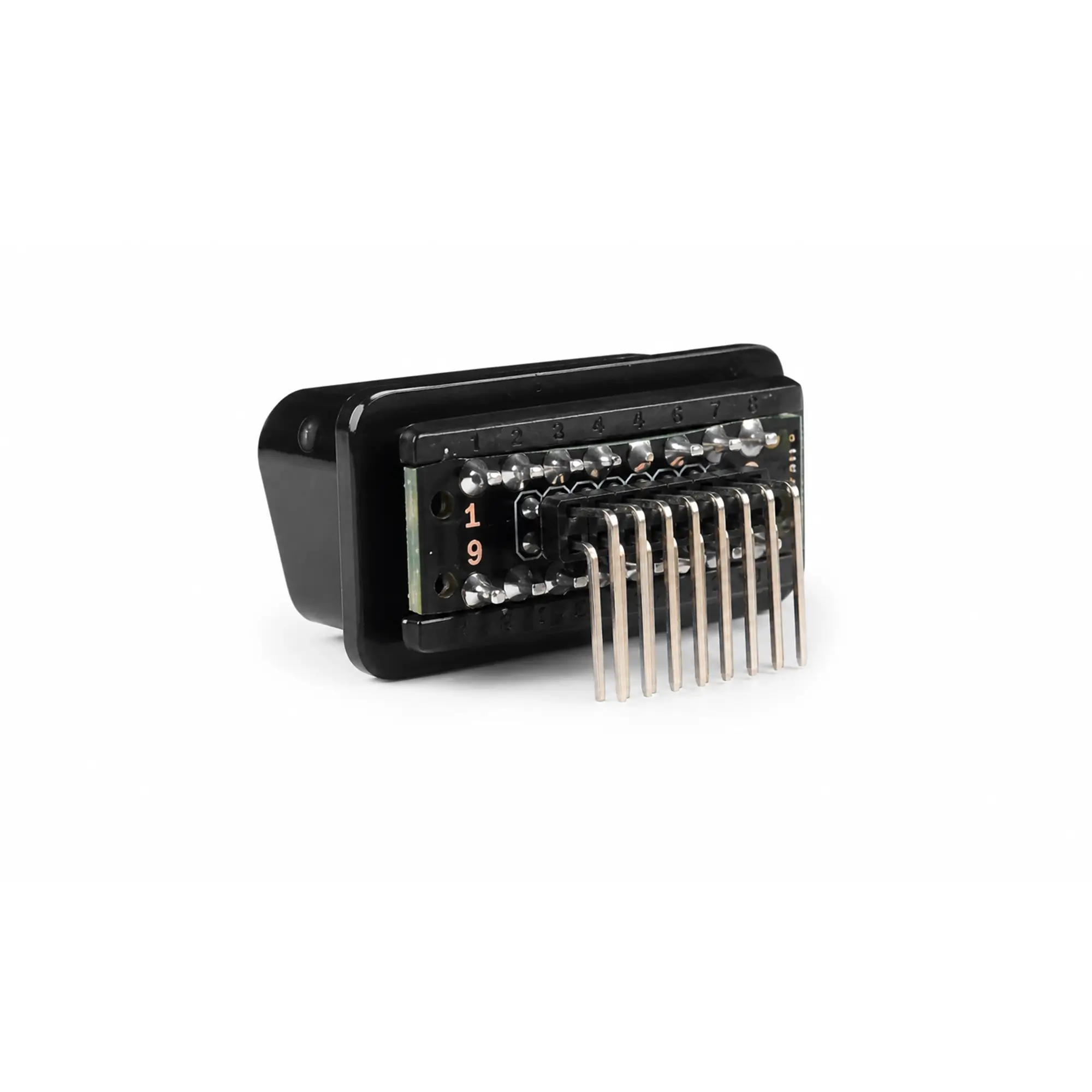

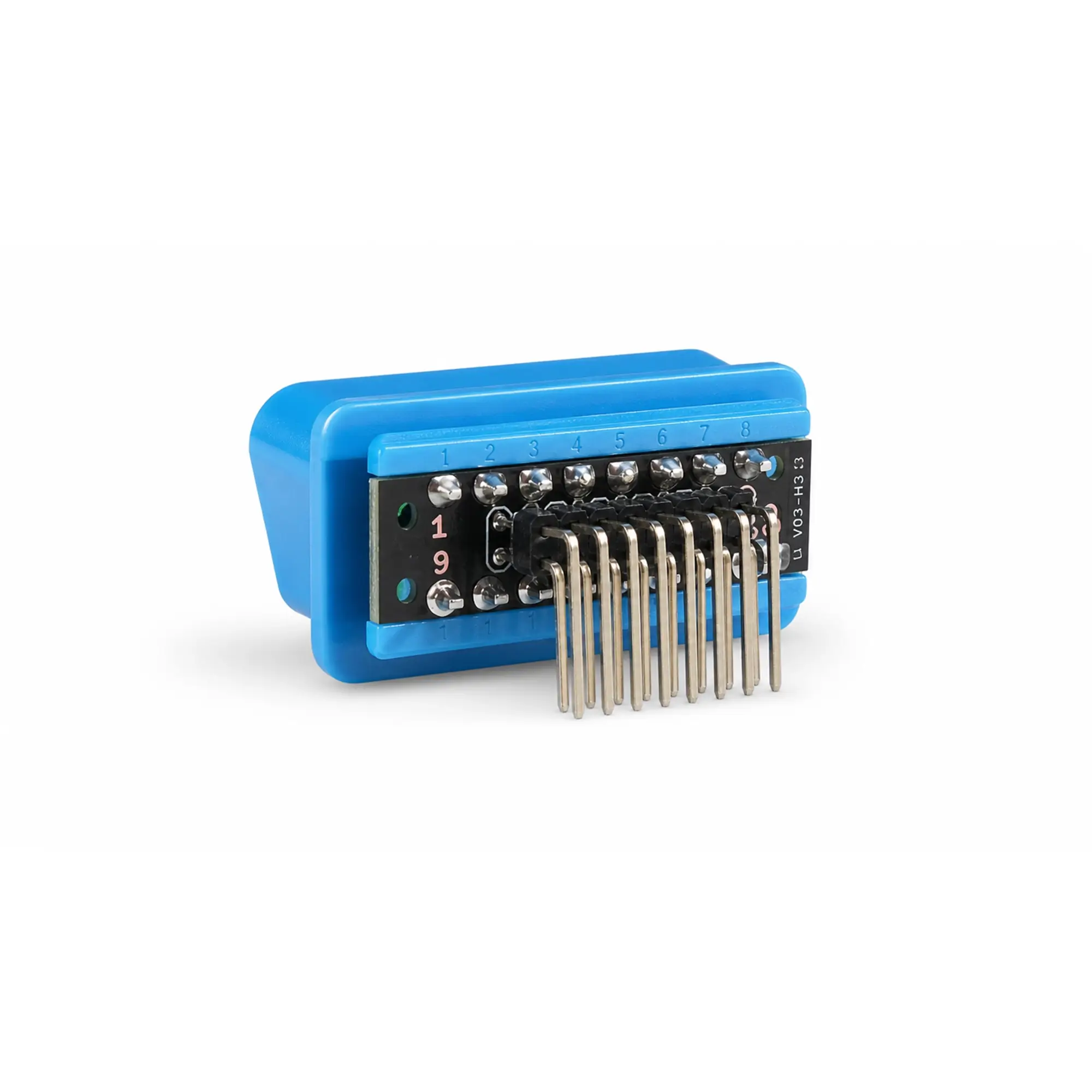

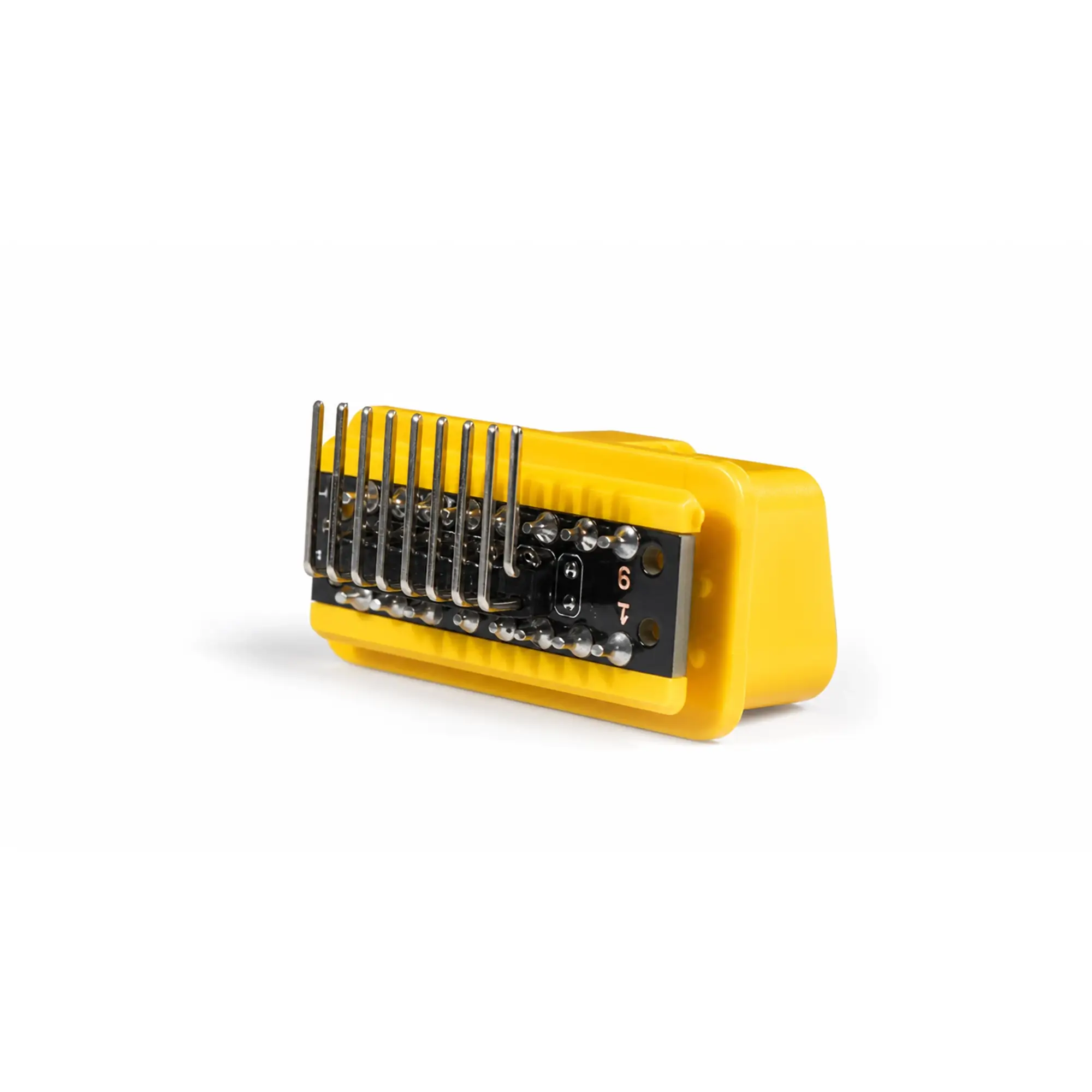

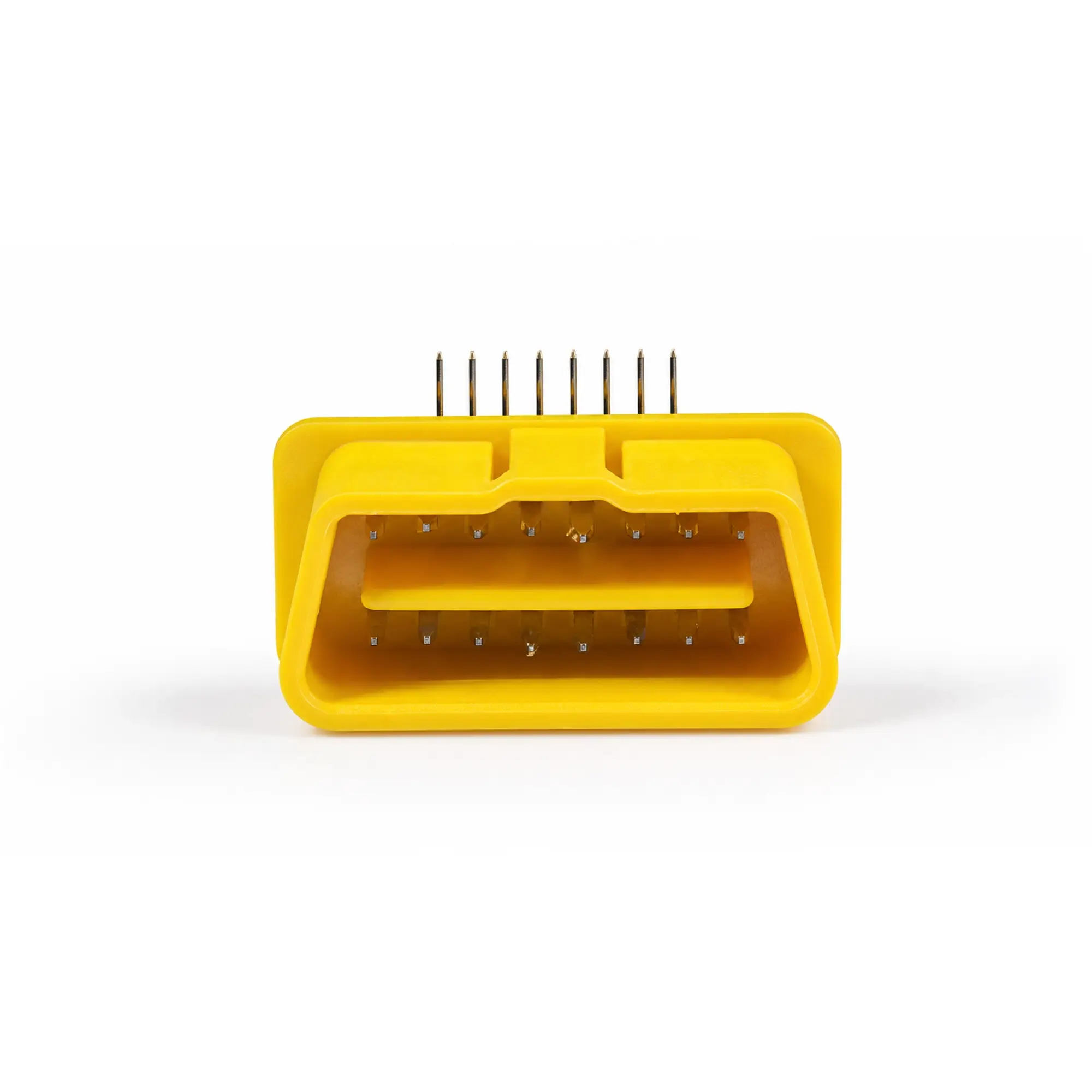

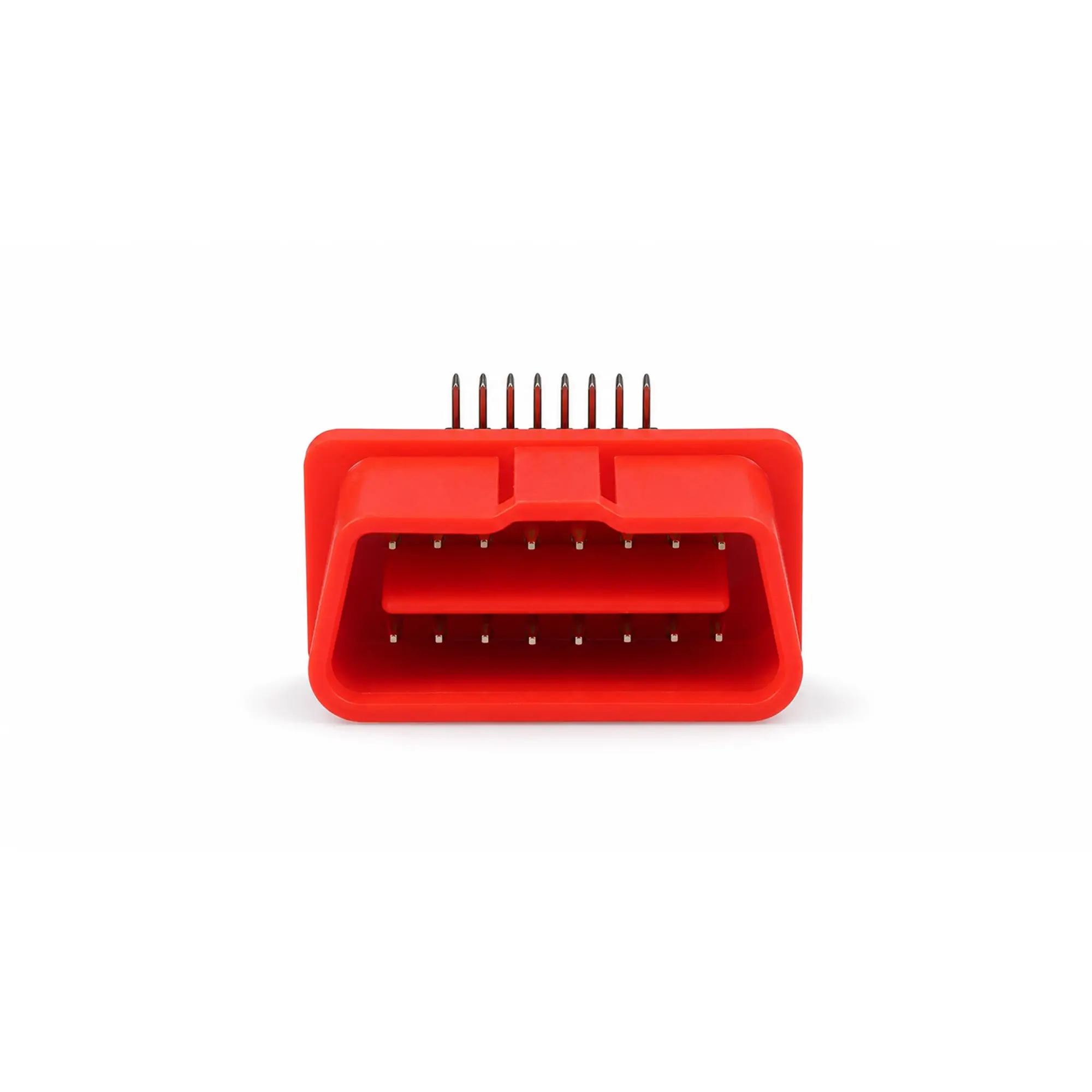

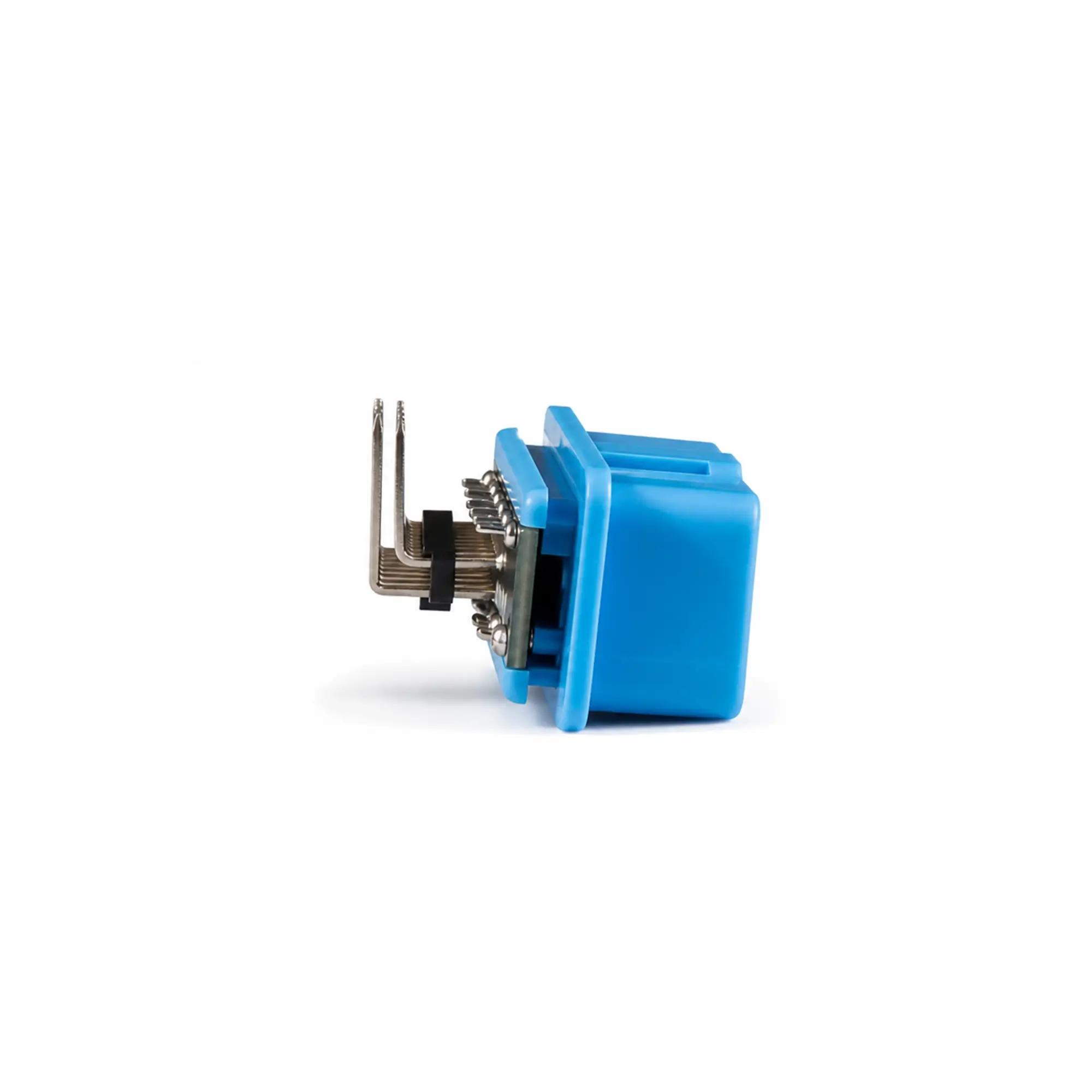

• 90° Right Angle Pin Header: Saves space and ensures clean, right-angled wire or PCB connections for low-profile setups.

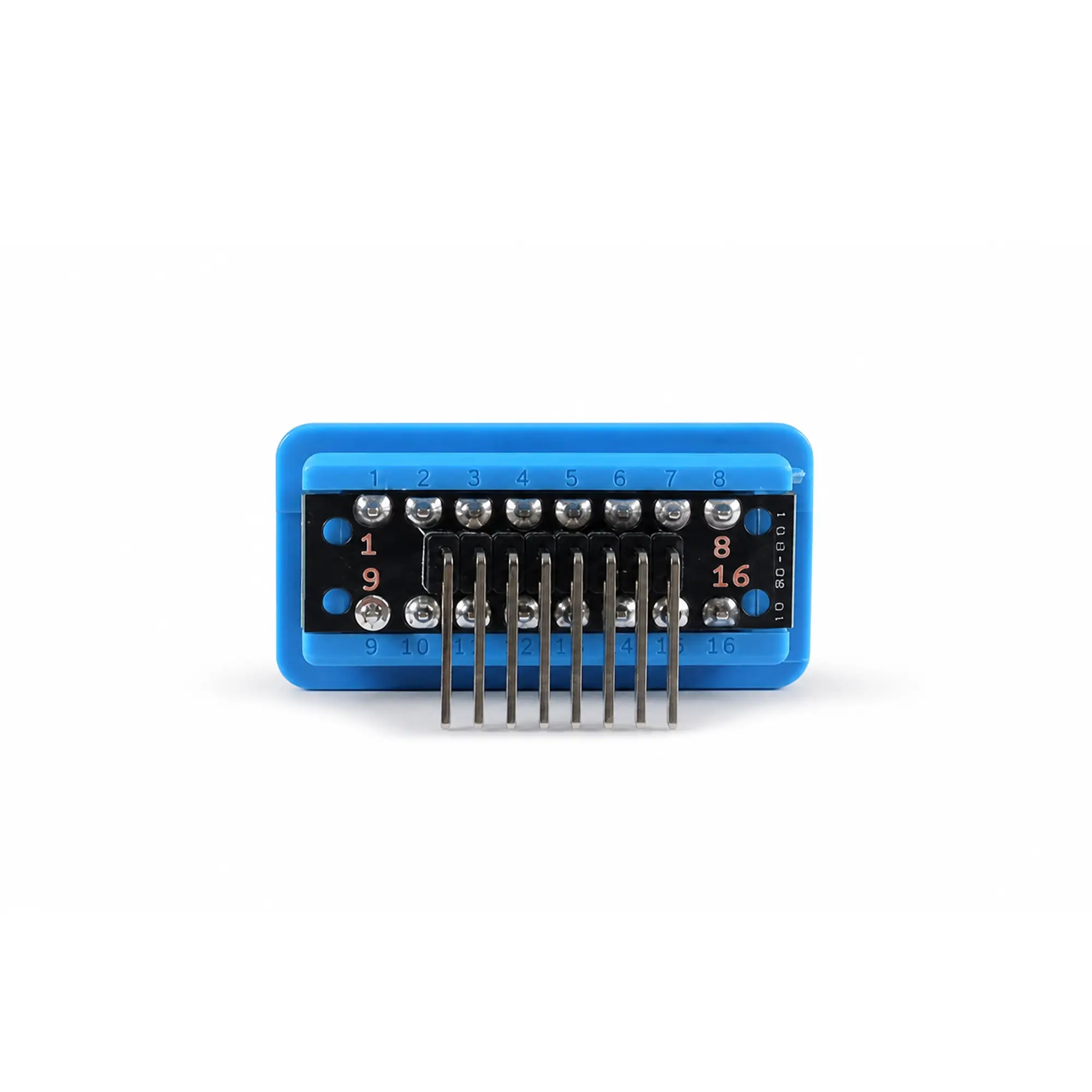

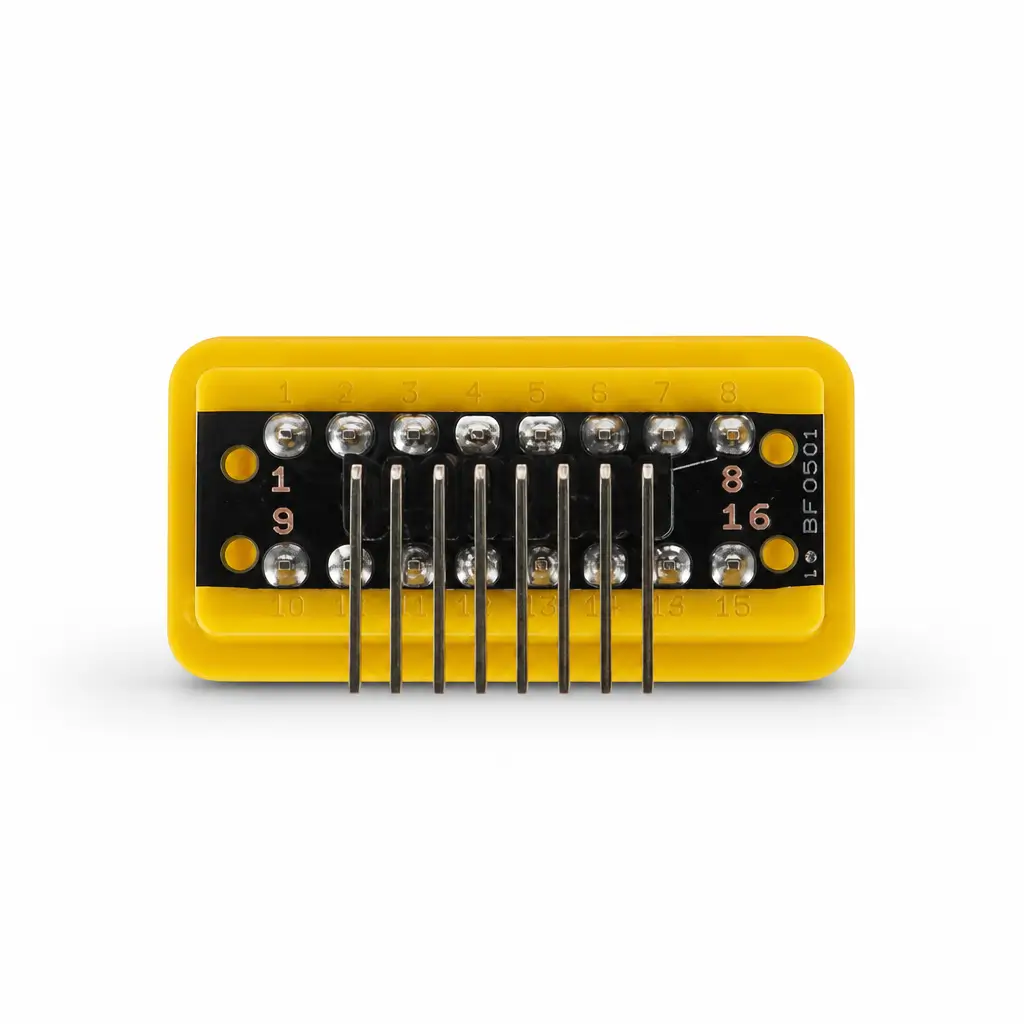

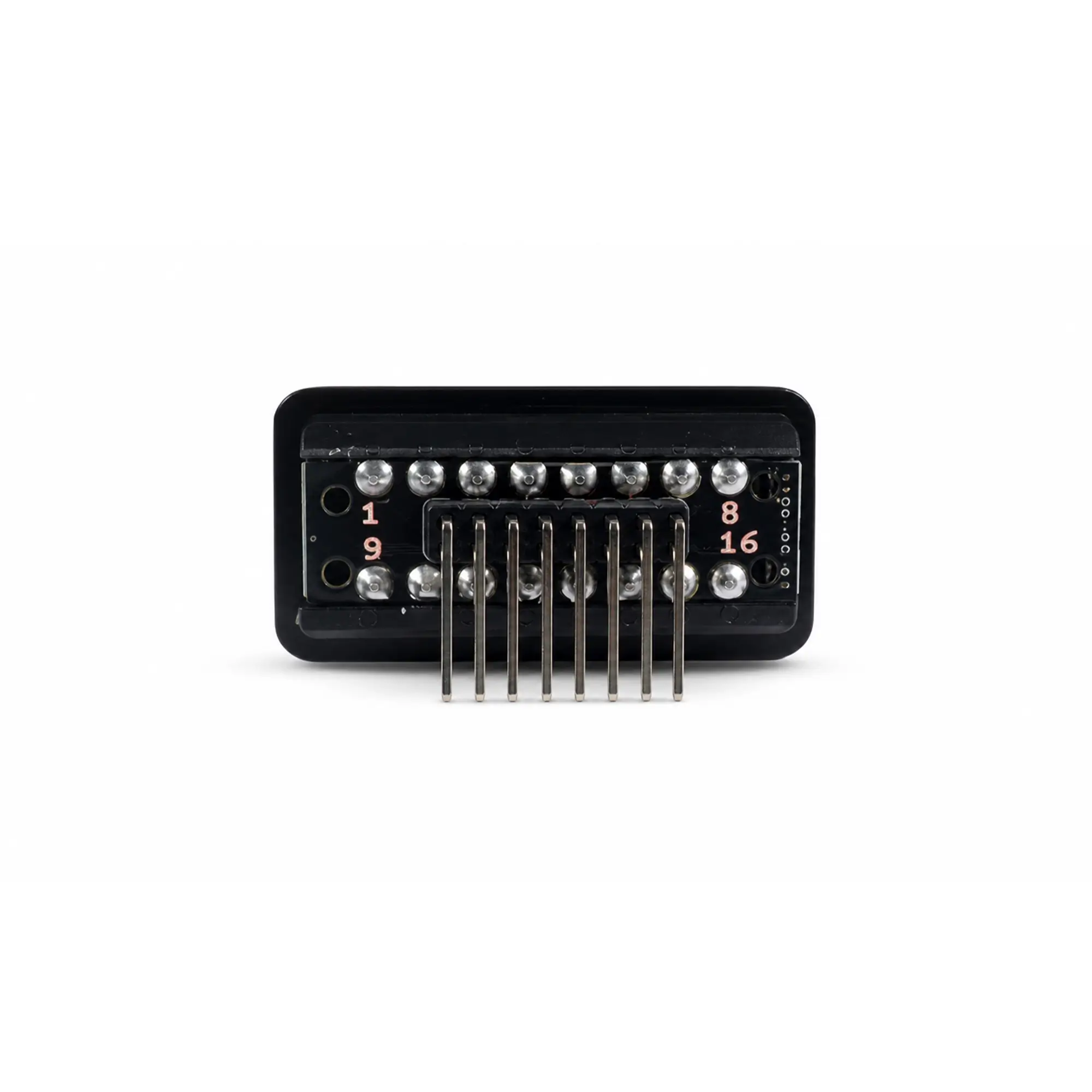

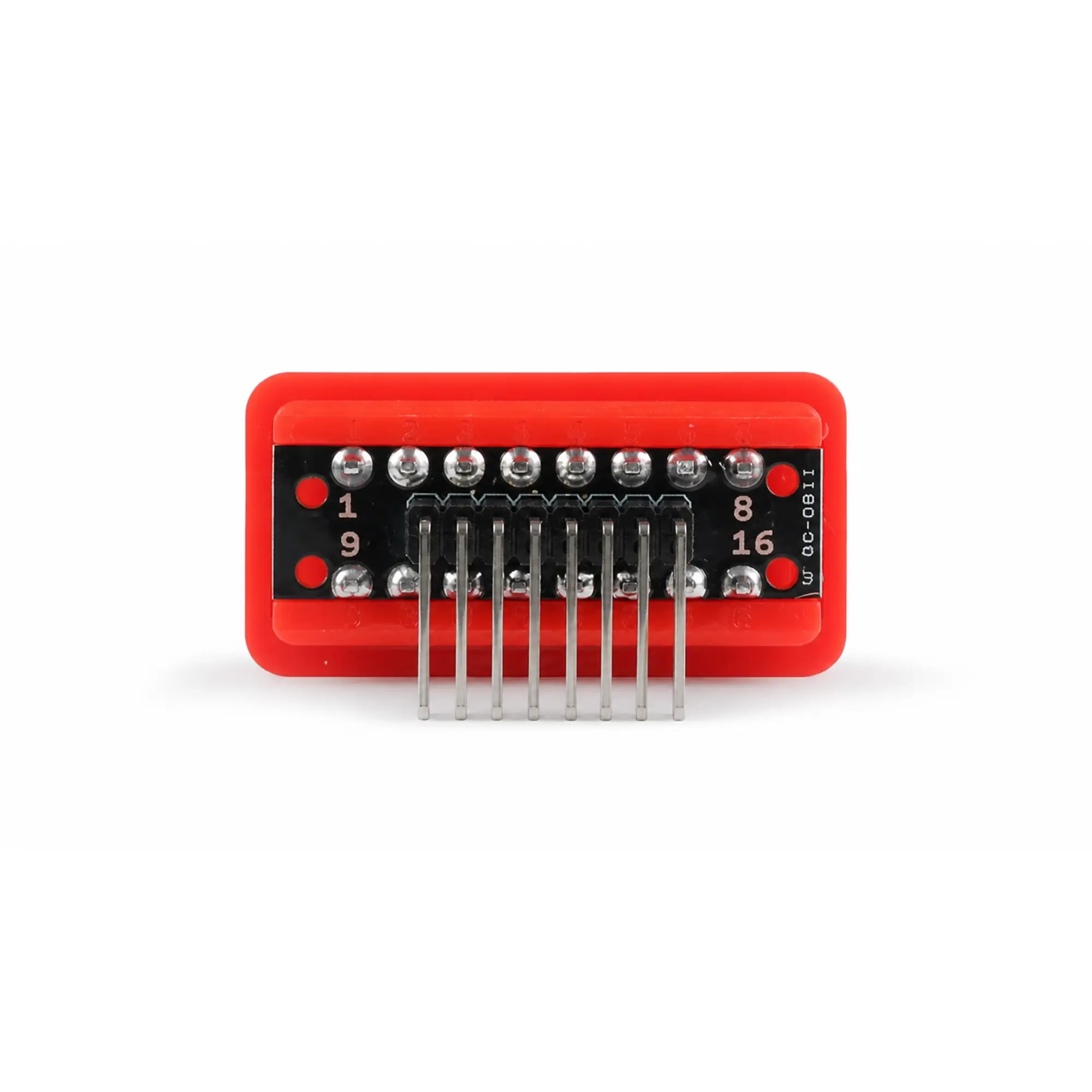

• Numbered Pin Layout: Clear silk-screen labeling (Pin 1 to 16) on the internal carrier board for quick, error-free soldering and pinout verification.

• Universal Standard: Fully compliant with the SAE J1962 / OBD-II standard vehicle ports and diagnostic interfaces.

• Reliable Conductivity: High-grade pins and solder pads built to ensure stable data line connections (CAN, K-Line, Power, Ground) during critical diagnostic/programming procedures.

Technical Specifications
