Volvo S90, V90, XC90, XC60, V60, XC40 Steering Lock Emulator (2015–2019)

>

Manufacturer	Compatible Part Number	GTIN
M4KEY	| S90 | V90 | XC90 | XC90 | 31476490 | 32221636 | 32246736 |	8684990060194

Product Overview: Permanent Solution for Next-Generation Volvo Steering Lock Failure

This device is a permanent solution developed for the Electronic Steering Lock (ELV/ESL) failure commonly found in Volvo S90, Volvo V90, Volvo XC90, Volvo XC60, Volvo V60, and Volvo XC40 (2015–2019 SPA & CMA platforms).

This fault typically causes the vehicle not to start or the ignition not to respond.

The official dealership solution is expensive and requires ordering a new steering lock unit with complex online programming.
This emulator is designed to permanently bypass the faulty mechanical steering lock system.

---

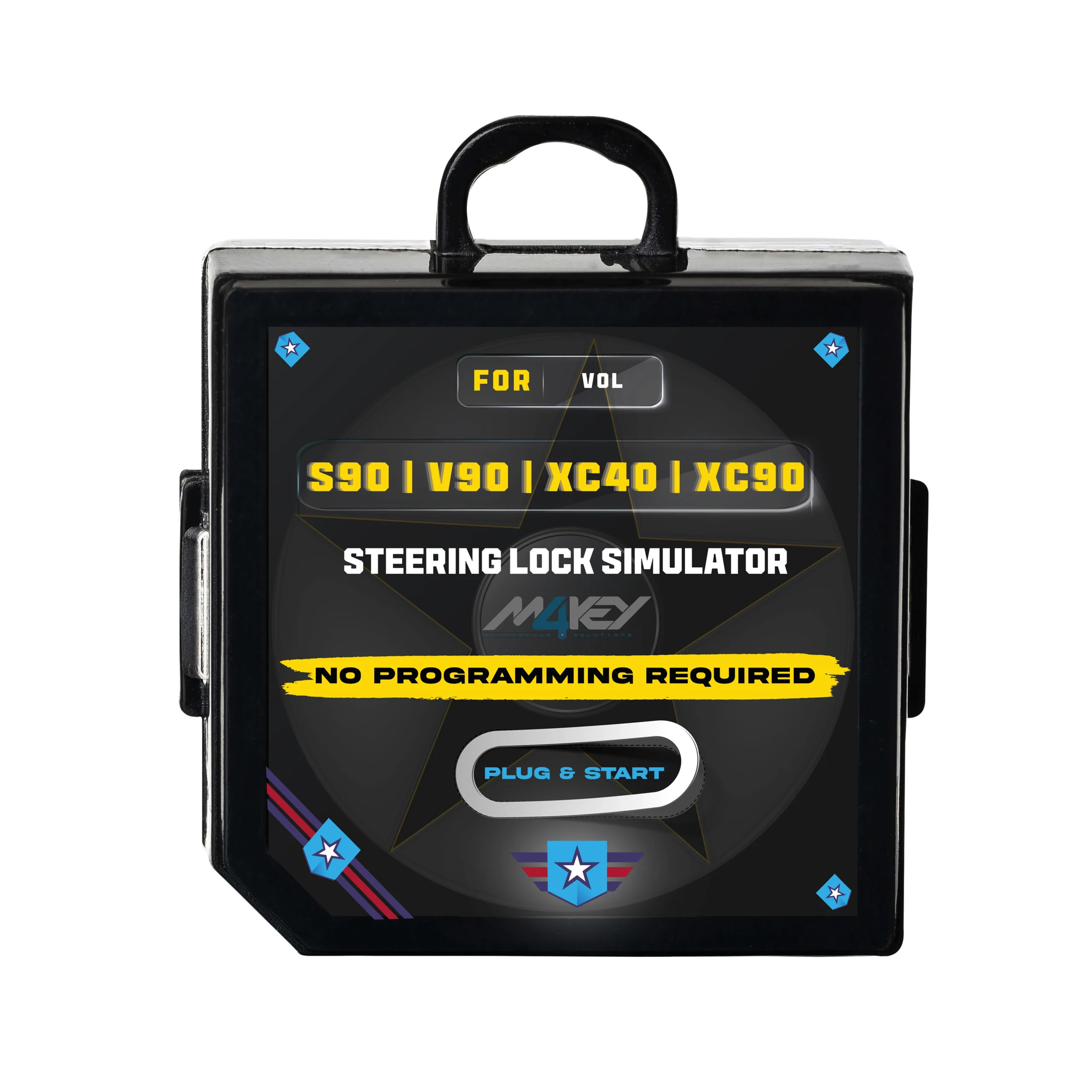

No Programming Required (Plug & Play)

Unlike some systems (such as Mercedes W204 emulators), this unit does NOT require coding or programming.
Once connected, it immediately sends a “steering lock unlocked” signal to the vehicle.

---

Step-by-Step Installation Guide

1. Turn off the ignition.
2. Disconnect the socket from the faulty original ESCL unit.
3. IMPORTANT: If the steering lock is stuck in the locked position, remove the lock mechanically first.
4. Connect the emulator to the vehicle’s original socket.
5. Connect a professional diagnostic tool.
6. Access the CEM module (or relevant system) and clear all steering lock fault codes.
7. Start the vehicle.

---

LED Status Indicators

The emulator mimics the original steering lock status:

• Solid GREEN Light:
  Status: Successful. Steering lock is unlocked and vehicle is ready to start.

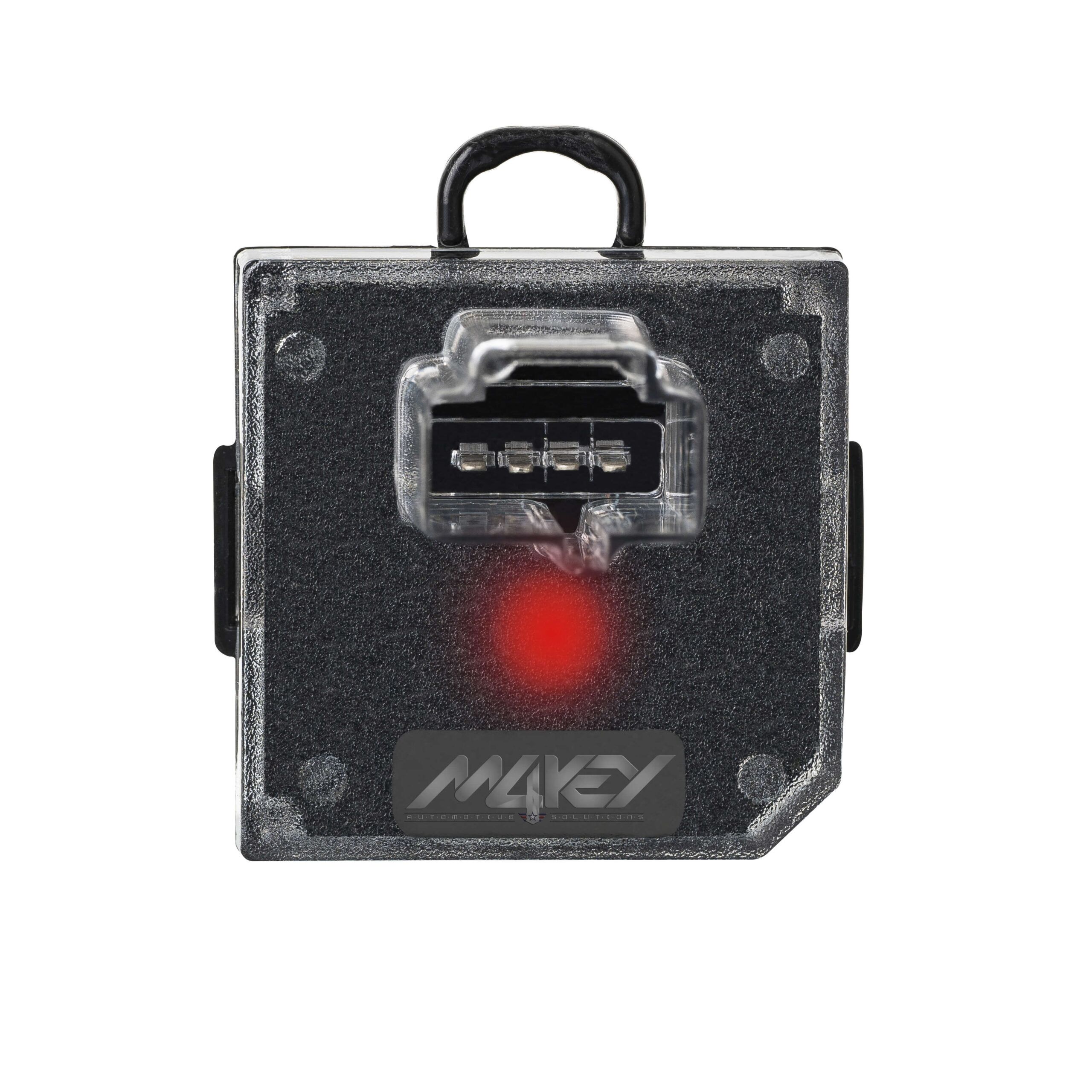

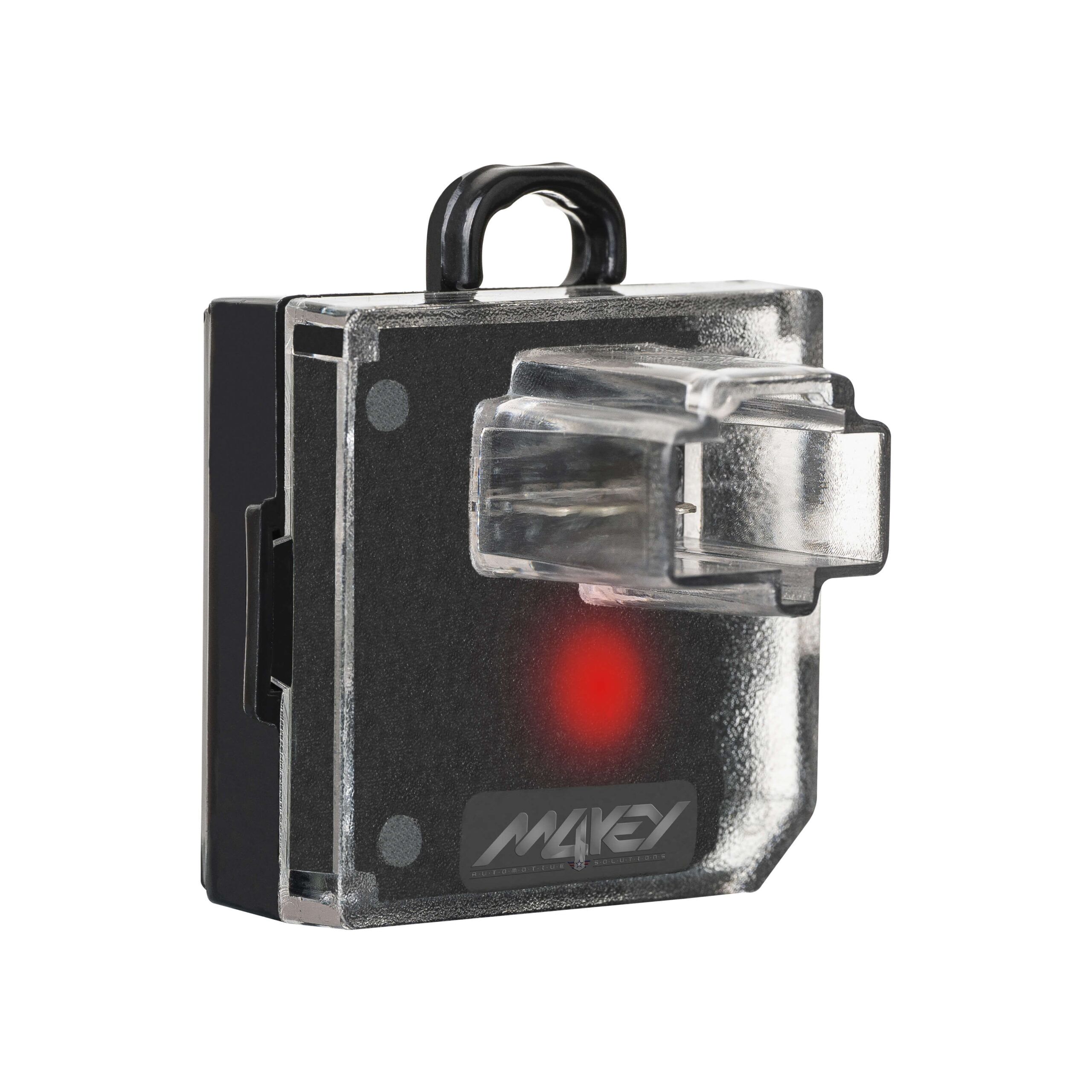

• Solid RED Light:
  Status: Steering lock is locked (normal when ignition is OFF).
• Flashing RED Light:
  Status: Error. Fault codes in the CEM module have not been cleared.
  → Connect a diagnostic tool and reset the errors.

---

Compatible Models (2015–2019)

• Volvo S90
• Volvo V90
• Volvo XC90
• Volvo S60
• Volvo V60
• Volvo XC60



M4KEY For VOLVO| S90| V90| XC90 | XC40 | Steering Lock Simulator Emulator Light Behavior:

1-Red SCL is in “locked” state.

2-Green SCL is in “unlocked” State.
